CAT: 4179

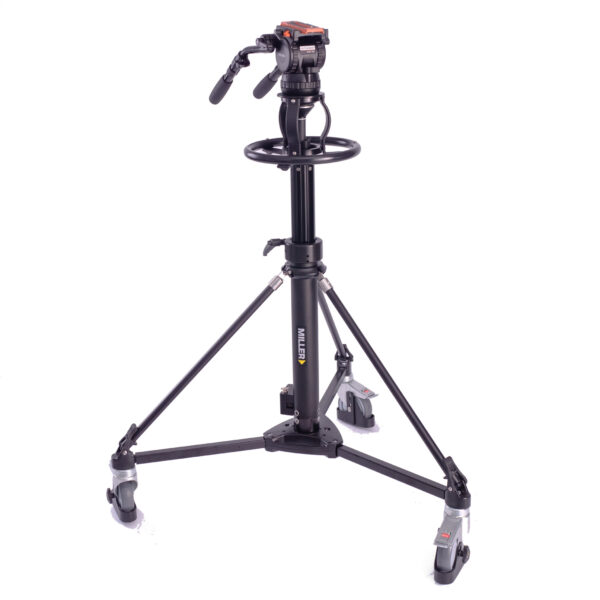

CXV+14 Combo Pedestal System

Light weight and portable pedestal Compare

• 5 selectable positions of fluid pan and tilt drag + 0.
• 16 position CB Plus™ counterbalance system.
• Wide payload range 0-14.0kg (0-30.9lbs).
• Quick action column lock.
• Smooth 350mm (13.8”) stroke.
• Independent 125mm dolly wheel brake system.
• Sturdy adjustable cable guards.
• Steering wheel diameter 294mm (11.6”).
• Dolly tracking width 920mm (36.2”).

From your nearest dealer

Introducing the 4179 CXV+14 Combo Pedestal, a revolutionary solution that combines lightweight portability with unparalleled performance. Designed to meet the demanding needs of studio operators, this pedestal features an innovative air adjustable column system, providing a generous 350mm (13.8”) stroke and a remarkable payload range of 0-14.0kg (0-30.9lbs).

Crafted with sturdy construction, the CXV+14 ensures maximum stability and reliability, even in the most challenging shooting environments. Its user-friendly design and simple setup process make it a stress-free choice for both experienced professionals and newcomers alike.

The CXV+14 Combo Pedestal stands out as the clear choice for studio operators seeking versatility and exceptional performance. With its ability to handle heavier payloads while maintaining lightweight portability, it offers unmatched flexibility for a wide range of production scenarios.

Whether you’re working on a film set, television studio, or live event production, the CXV+14 Combo Pedestal delivers the reliability and performance you need to bring your creative vision to life. Experience the difference with the CXV+14 and elevate your studio operations to new heights of excellence.

Specifications - CXV+14 Combo Pedestal System

Column In-Shot Stroke

350mm (13.8")

Components

1047 CXV14 fluid head 696 2 x Pan handle telescopic with clamp 1960 Combo pedestal

Height Range

1050-1400mm (41.3-55.1”)

Mounting Base

Ø100mm (3.9") ball levelling

Payload Range

0-14.0kg (0-30.9lbs)

Steering Wheel Diameter

Ø294mm (11.6")

Tracking Width

920mm (36.2”)

Weight

18.0kg (39.7lbs)

Wheel Diameter

Ø125mm (4.9")

pdf
(Size: 898.72 KB)
pdf
(Size: 2495.35 KB)
pdf
(Size: 159.23 KB)
pdf
(Size: 1859.25 KB)

Compatible Accessories

EAN | UPC | GTIN 9354041004147
