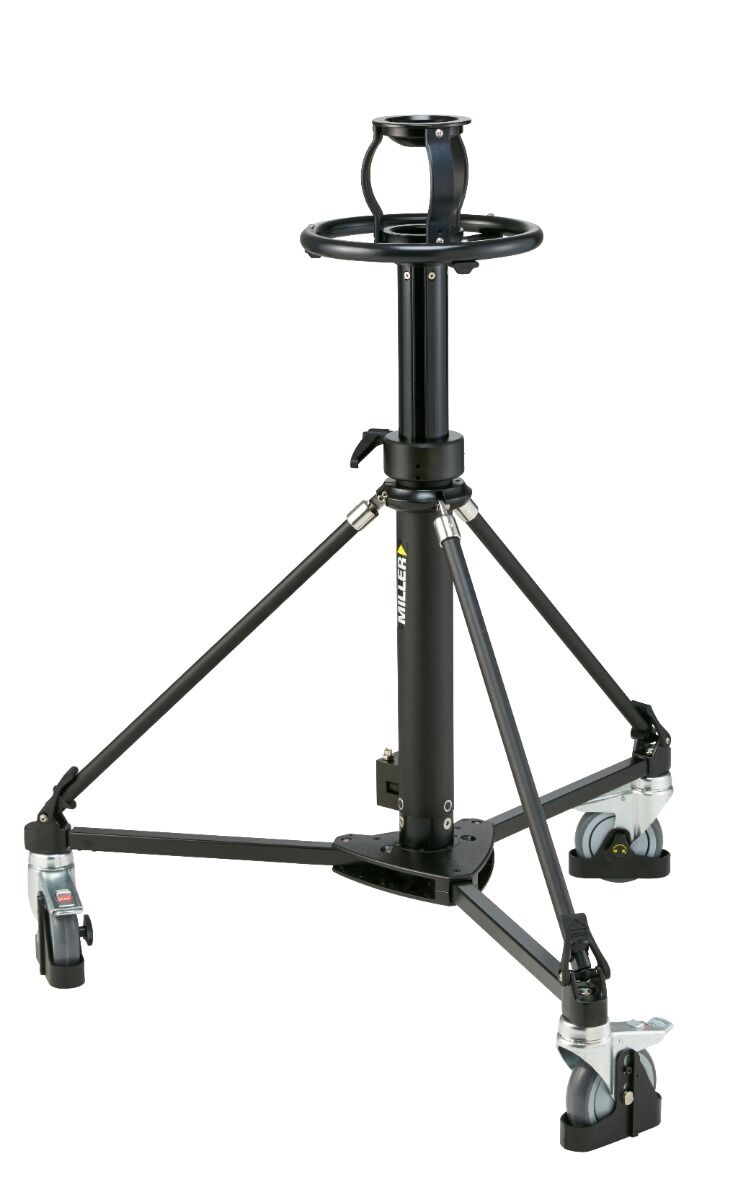

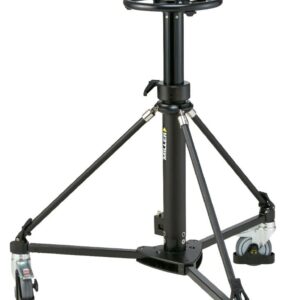

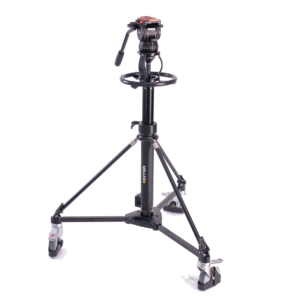

CXV+10 Combo Pedestal

Name: CXV+10 Combo Pedestal - Miller Tripods
SKU: 4175
Price: 1.00 AUD
Availability: InStock

Light weight and portable pedestal Compare

• 7 selectable positions of fluid pan and tilt drag + 0.
• 16 position CB Pluscounterbalance system.
• Perfect for payloads to 0-12.0kg (0-26.4lbs).
• Quick action column lock.
• Smooth 350mm (13.8″) stroke.
• Independent 125mm dolly wheel brake system.
• Sturdy adjustable cable guards.
• Steering wheel diameter 294mm (11.6″).
• Dolly tracking width 920mm (36.2″).

Make a Sales Enquiry

1 customer had already enquired for this product.

From your nearest dealer

Introducing the 4175 CXV+10 Combo pedestal, a revolutionary solution designed to elevate your studio operations to new heights of excellence. Crafted with precision and innovation, this pedestal combines lightweight portability with exceptional performance to meet the diverse needs of studio operators.

Featuring an advanced air adjustable column system, the CXV+10 delivers a generous 350mm (13.8”) stroke and an impressive payload range of 0-12.0kg (0-26.4lbs). Its sturdy construction ensures maximum stability and reliability, allowing for smooth and precise camera movements with every use.

With user-friendly features and intuitive setup, the CXV+10 provides a stress-free experience for operators of all skill levels. Whether you’re working on film sets, television studios, or live event productions, the CXV+10 offers unmatched versatility and performance to bring your creative vision to life.

Discover the future of camera support technology with the CXV+10 Combo pedestal.

Specifications - CXV+10 Combo Pedestal

Column In-Shot Stroke	350mm (13.8")

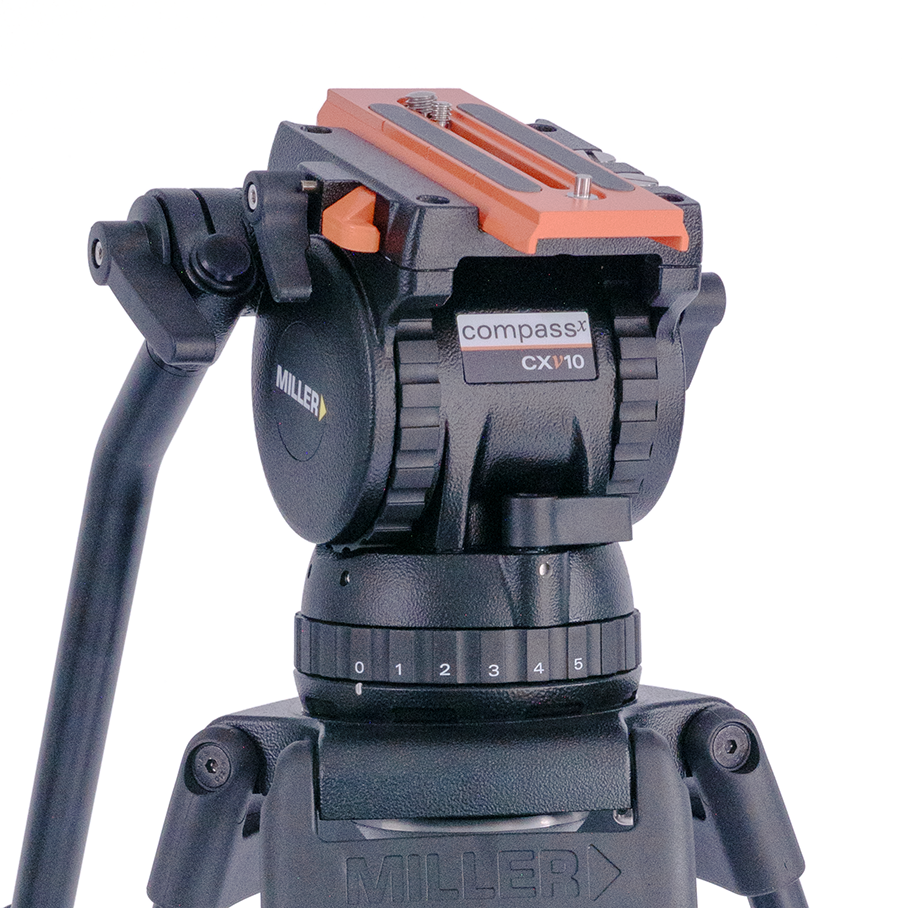

Components	1044: CXV10 fluid head, 696: 2 x Pan handle – telescopic with clamp, 1960: Combo pedestal
Height Range	1062-1412mm (41.8-55.6")
Mounting Base	Ø100mm (3.9") ball levelling
Payload Range	0-12kg (0-26.4lbs)
Steering Wheel Diameter	Ø294mm (11.6")
Tracking Width	1072mm (42.2")
Weight	18.0kg (39.7lbs)
Wheel Diameter	Ø125mm (4.9")
