CAT: 3032

Arrowx 1 Solo-Q 100 3 Stage Carbon Fibre

Compare

Compact, lightweight and versatile.
5 selectable positions of fluid pan and tilt drag + 0.
16 position CB Pluscounterbalance system.
Perfect for payloads to 0-16.0kg (0-35.3lbs).
Integrated 100mm bowl.
3-stage rapid leg lock extension.
Q-Lock for rapid set-up and stowage.
Lightweight carbon fibre legs.
Comes with 2-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

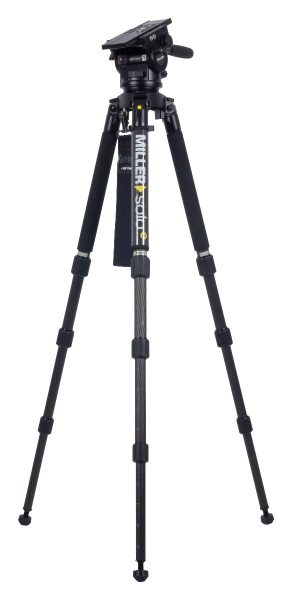

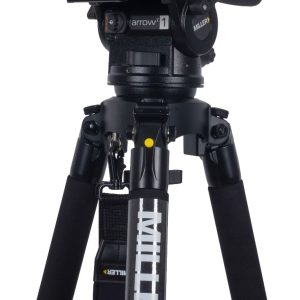

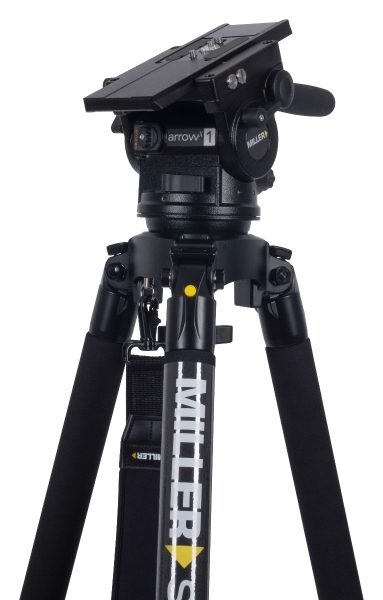

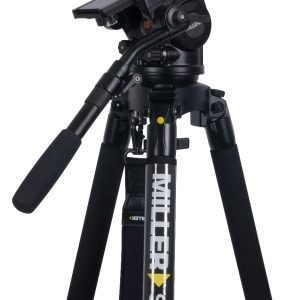

The 3032 Arrowx 1 Solo-Q 100 3 stages (carbon fibre) system, is designed for speed of setup, high level of stability and flexibility of payloads, The 2520 spreader less three stage tripod, included in this system provides the ultimate range of heights, speed of set up and works perfectly on all terrains.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, Arrowx 1 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

0-16.0kg (0-35.3lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 1 Solo-Q 100 3 stages ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.

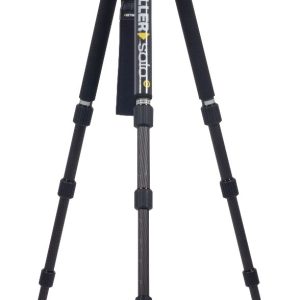

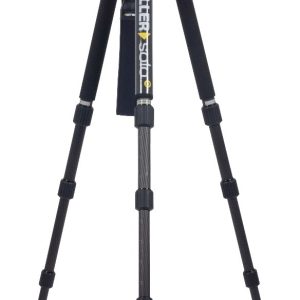

The Arrowx 1 is matched with the Solo-Q 3 stage (carbon fibre) tripod that results in range topping height range of 390-2041mm (15.3-80.38″), all terrain versatility in the lightest Arrowx system package.

Specifications - Arrowx 1 Solo-Q 100 3 Stage Carbon Fibre

Camera Platform	Quick release camera plate (Euro)

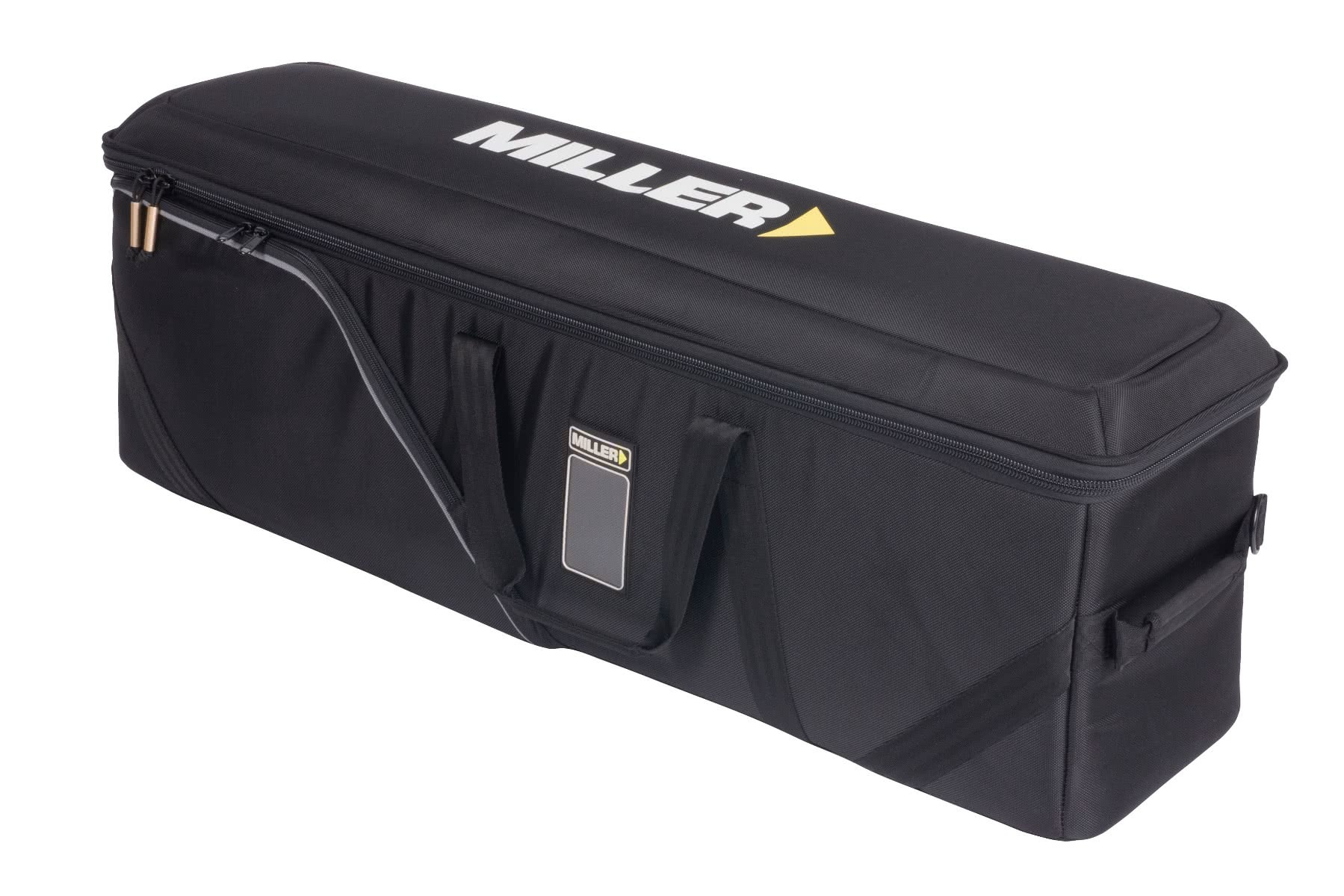

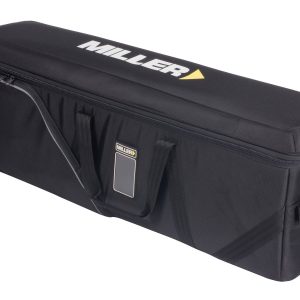

Components	1070: Arrowx 1 fluid head, 2520: Solo-Q 100 3-stage tripod (carbon fibre), 696: Pan handle – telescopic with clamp, 1520: Solo-Q shoulder strap (Aircell), 3502: Arrowx soft case 2-stage
Counterbalance Positions	16 selectable positions
Height Above Bowl	162mm (6.4")
Height Range	390-2041mm (15.3-80.38")
Illuminated Controls	Bubble Level
Leg Extension	3-stage telescopic
Leg Material	Carbon fibre
Lock Type	Concentric Rapid Lock & Q-Lock
Mounting Base	Ø100mm (3.9") ball levelling
Pan Handle	Telescopic 390-590mm (15.4-23.2")
Pan Range	360°
Pan Tilt Drag	7 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	0-16.0kg (0-35.3lbs)
Sliding Range	120mm (4.7)
Temperature Range	-40° to +65°C (-40° to +150°F)
Tilt Range	+ 90°/ -75°
Transport Length	825mm (32.5")
Weight	6.7kg (14.7lbs)
