CAT: 3021

Arrowx 1 Sprinter II 1 Stage Alloy

Compare

Compact, lightweight and versatile.
5 selectable positions of fluid pan and tilt drag + 0.
16 position CB Pluscounterbalance system.
Perfect for payloads to 0-16.0kg (0-35.3lbs).
Integrated 100mm bowl.
High speed independent 1-stage dual leg locks.
Durable black anodised alloy tubing.
Comes with mid-level ground spreader and rubber feet.

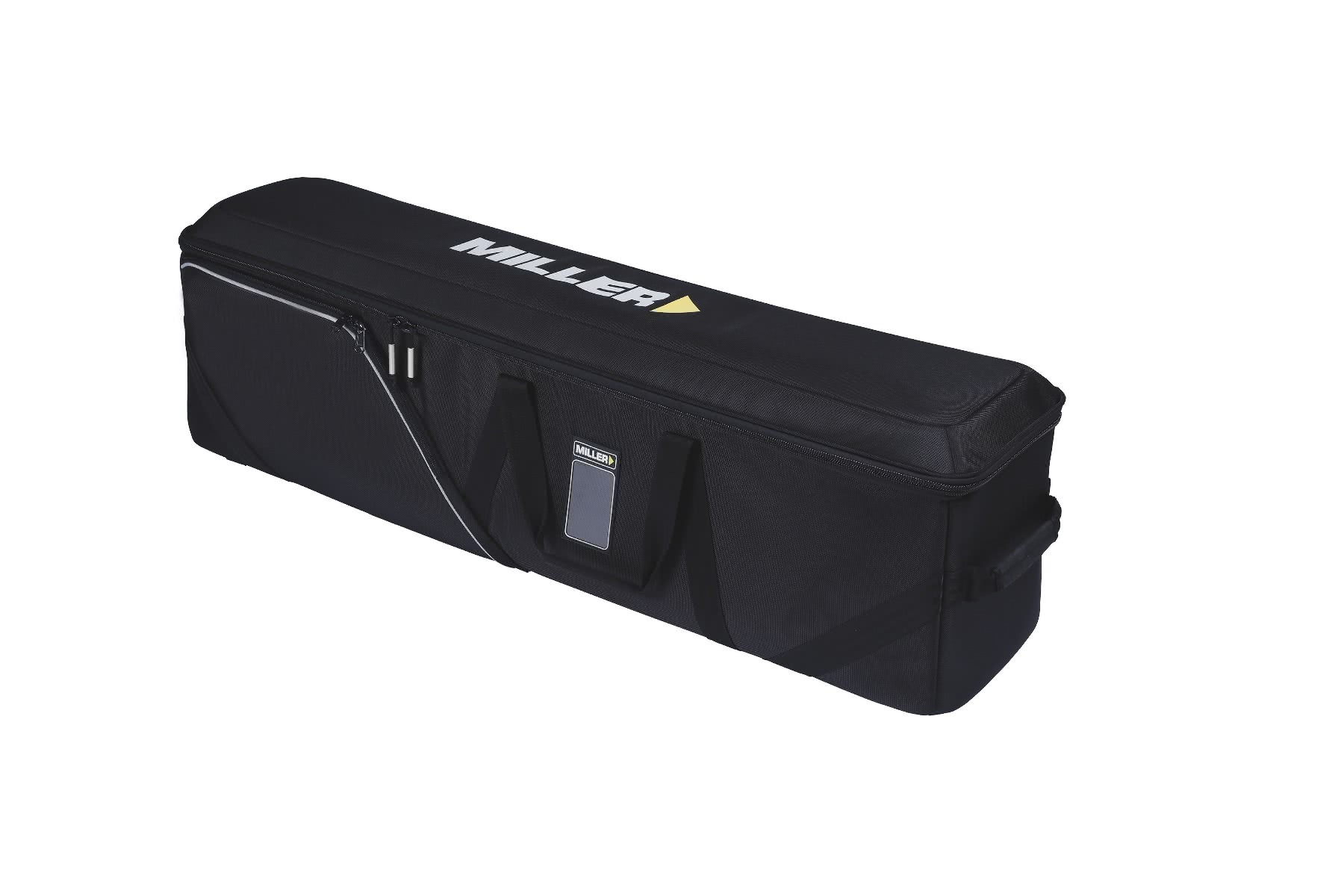

Comes with 1-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

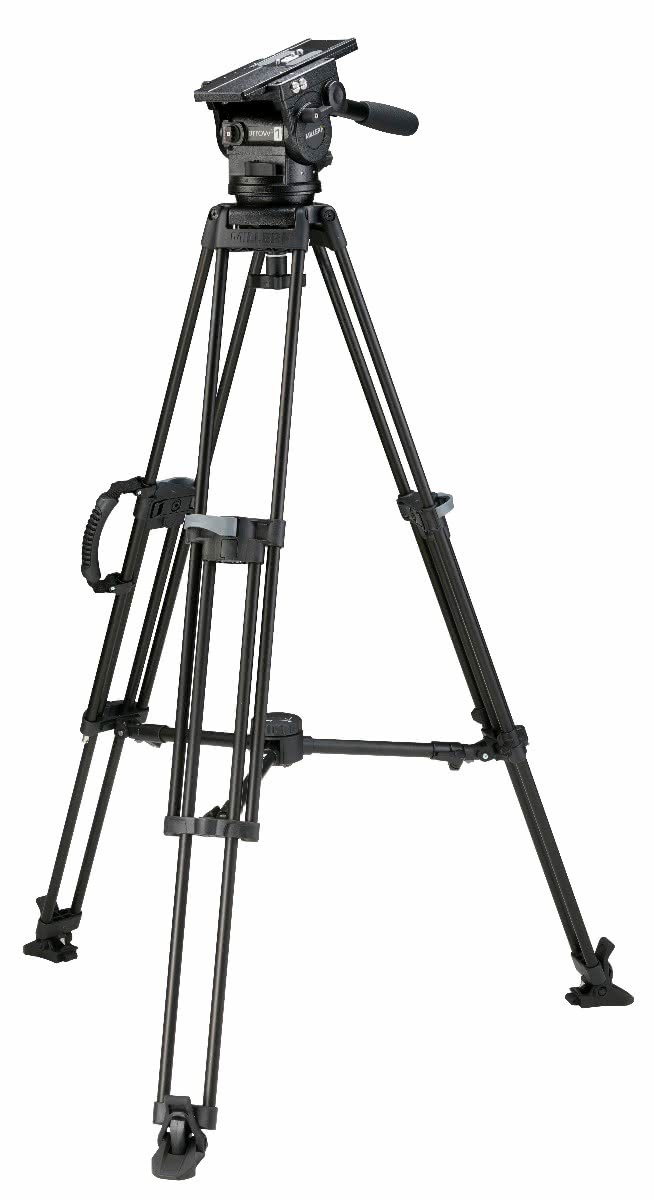

The 3021 ArrowX 1 Sprinter II 1 Stage alloy system, fitted with mid-level spreader is designed for speed of setup, high level of stability and flexibility of payloads, The mid-level spreader makes this system suitable for all terrains.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, ArrowX 1 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

0-16.0kg (0-35.3lb) payload range and 5 + 0 selectable pan-tilt fluid drag positions make ArrowX 1 Sprinter II 1 Stage ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.

The ArrowX 1 is matched with the 1 stage Sprinter II (alloy) tripod and mid-level spreader to give incredible speed of set up, hugely variable tripod footprint and the versatility to set up on all terrain.

Specifications - Arrowx 1 Sprinter II 1 Stage Alloy

Camera Platform	Quick release camera plate (Euro)
Components	1070: Arrowx 1 fluid head, 1589: Sprinter II 1-stage tripod (alloy), 993: Mid-level spreader, 475: Rubber feet (set of 3), 696: Pan handle – telescopic with clamp, 3500: Arrowx softcase 1-stage
Counterbalance Positions	16 selectable positions
Height Above Bowl	162mm (6.4")
Height Range	832-1592mm (32.8-62.8")
Illuminated Controls	Bubble Level
Leg Extension	1-stage
Leg Material	Alloy
Lock Type	HS Single Action
Mounting Base	Ø100mm (3.9") ball levelling
Pan Handle	Telescopic 390-590mm (15.4-23.2")
Pan Range	360°
Pan Tilt Drag	5 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	0-16.0kg (0-35.3lbs)
Sliding Range	120mm (4.7)
Temperature Range	-40° to +65°C (-40° to +150°F)
Tilt Range	+ 90°/ -75°
Transport Length	1002mm (39.4")
Weight	7.7kg (16.9lbs)
