CAT: 3023

Arrowx 1 Sprinter II 2 Stage Alloy

Compare

Compact, lightweight and versatile.
5 selectable positions of fluid pan and tilt drag + 0.

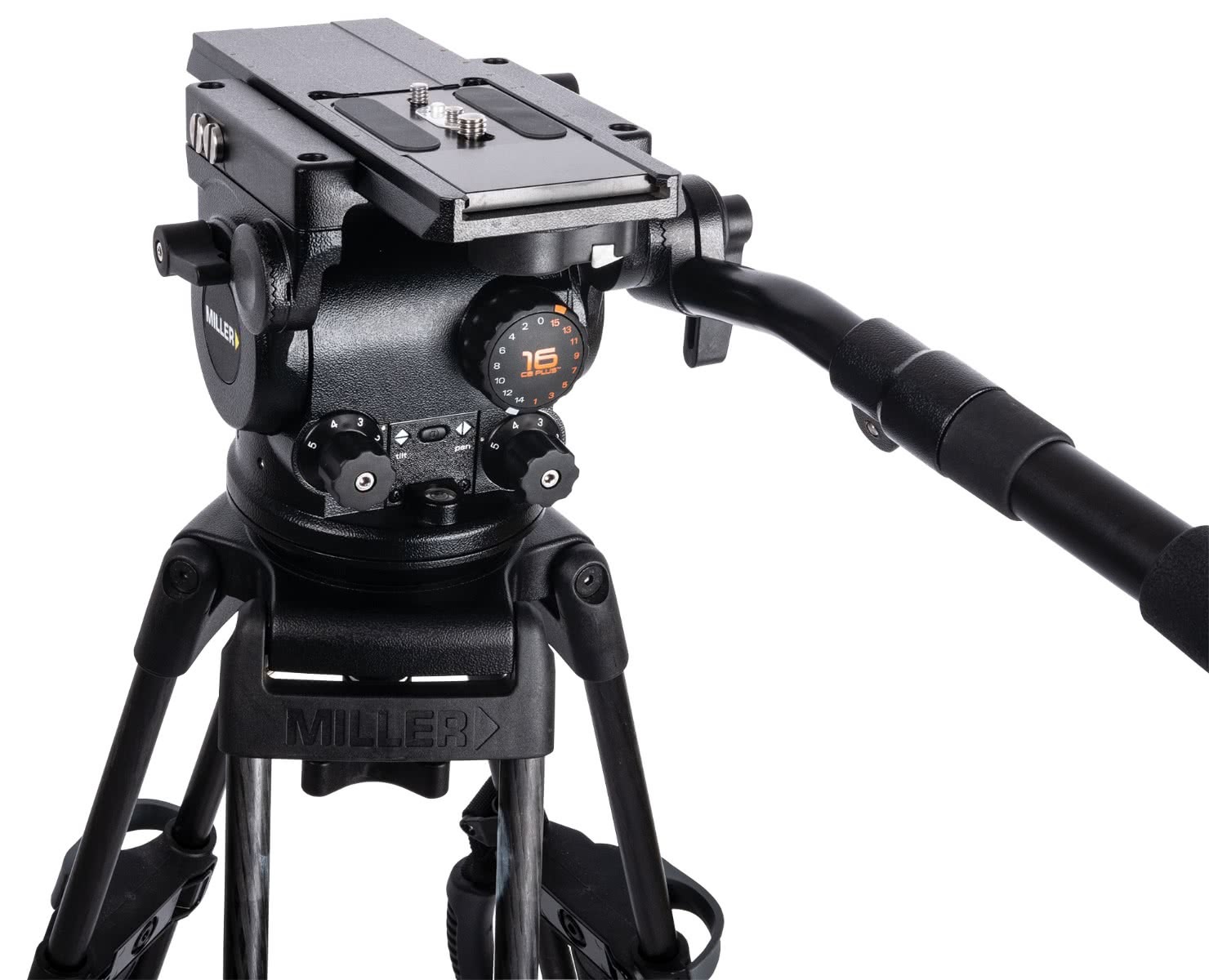

16 position CB Pluscounterbalance system.
Perfect for payloads to 0-16.0kg (0-35.3lbs).
Integrated 100mm bowl.
High speed independent 2-stage dual leg locks.
Durable black anodised alloy tubing.
Comes with on ground spreader.
Comes with 2-stage tripod bag.
3 year warranty.

Make a Sales Enquiry

From your nearest dealer

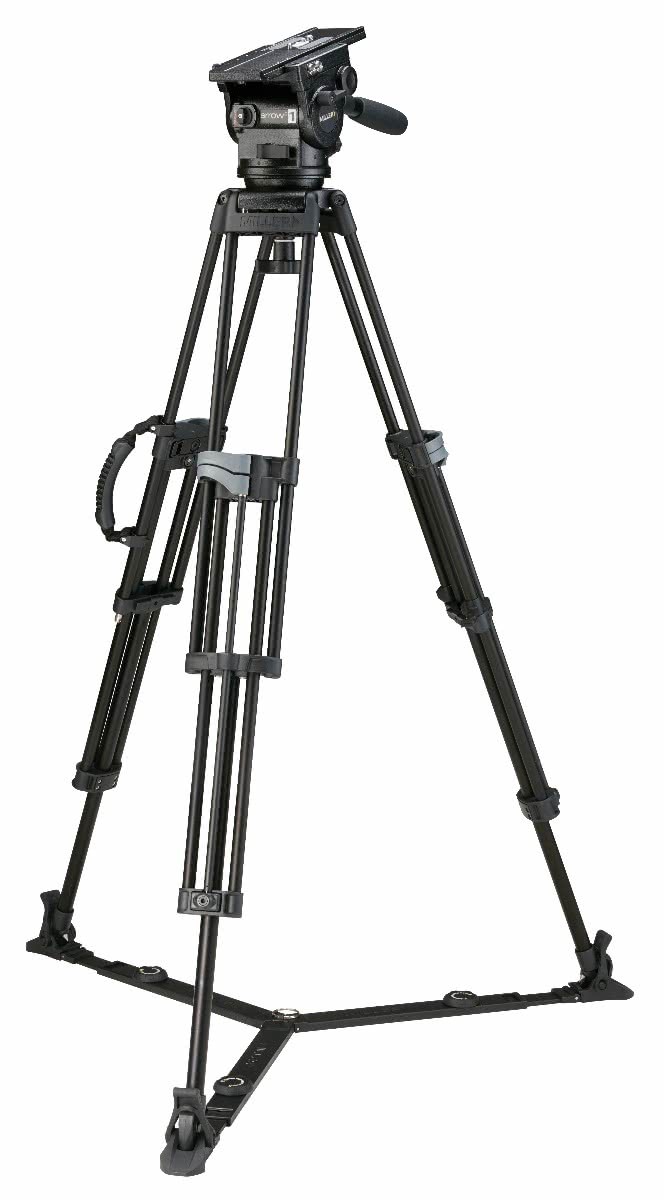

The 3023 Arrowx 1 Sprinter II 2 Stage alloy system, fitted with ground spreader is designed for speed of setup, high level of stability and flexibility of payload, is best suited for level terrain.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, ArrowX 1 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

0-16.0kg (0-35.3lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make Arrowx 1 Sprinter II 2 Stage ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.

The ArrowX 1 is matched with the 2 stage Sprinter II (alloy) tripod and ground spreader to give incredible speed of set up and incredible height range.

Specifications - Arrowx 1 Sprinter II 2 Stage Alloy

Camera Platform	Quick release camera plate (Euro)

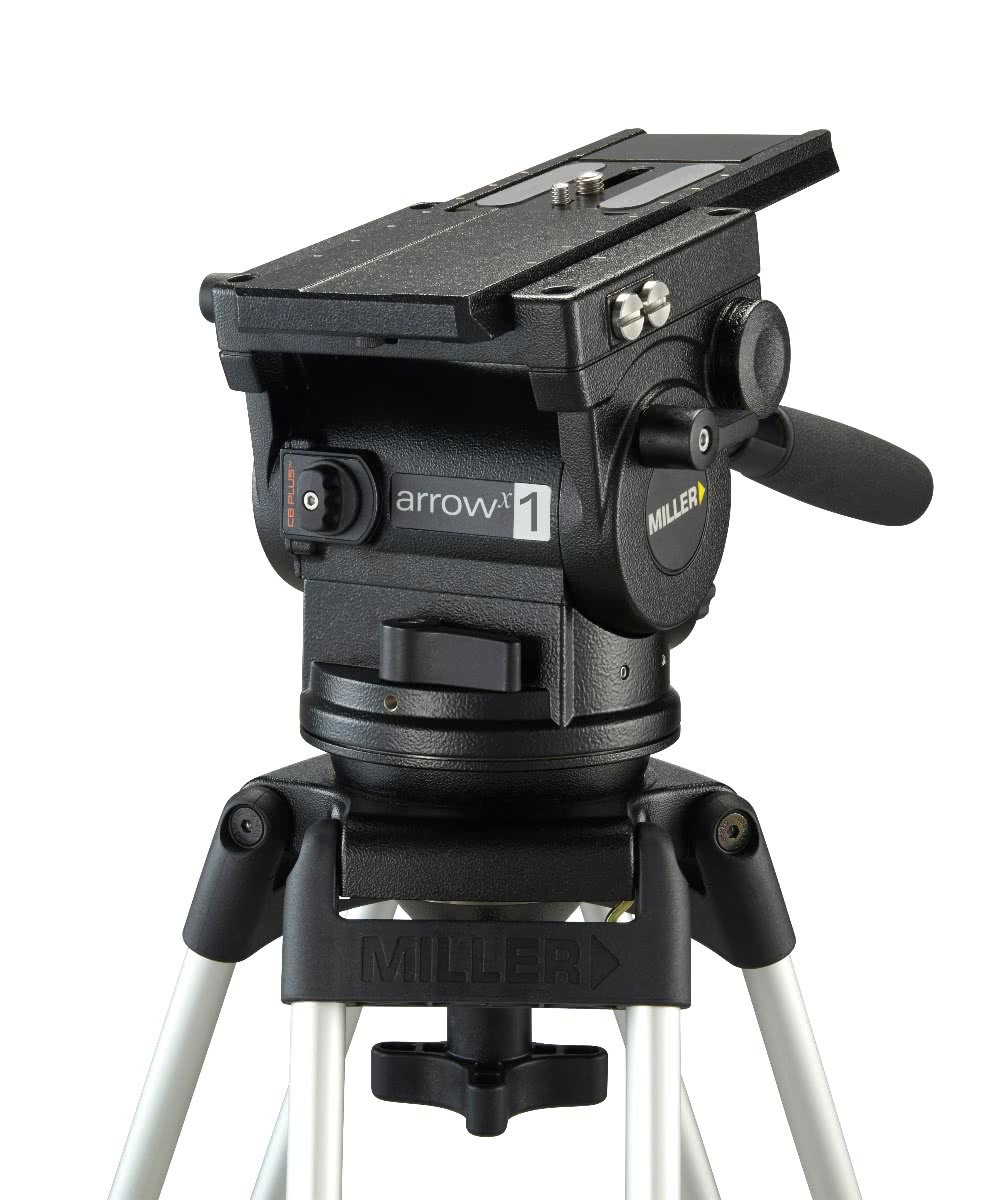

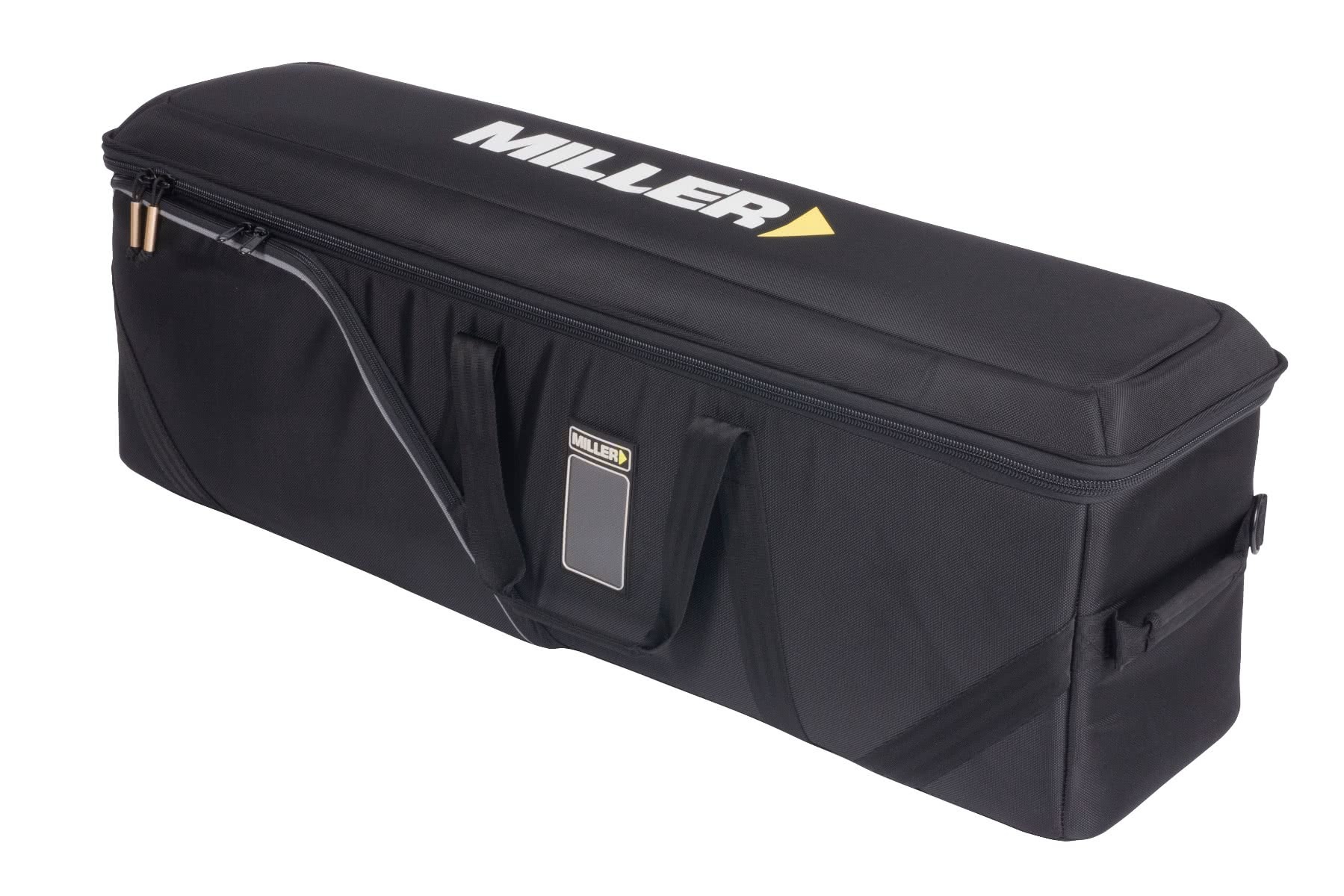

Components	1070: Arrowx 1 fluid head, 1589: GSprinter II 1-stage tripod (alloy), 470: On ground spreader, 696: Pan handle – telescopic with clamp, 3502: Arrowx soft case 2-stage
Counterbalance Positions	16 selectable positions
Height Above Bowl	162mm (6.4")
Height Range	602-1692mm (23.7-66.6")
Illuminated Controls	Bubble Level
Leg Extension	1-stage
Leg Material	Alloy
Lock Type	HS Single Action
Mounting Base	Ø100mm (3.9") ball levelling
Pan Handle	Telescopic 390-590mm (15.4-23.2")
Pan Range	360°
Pan Tilt Drag	5 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Payload Range	0-16.0kg (0-35.3lbs)
Sliding Range	120mm (4.7)
Temperature Range	-40° to +65°C (-40° to +150°F)
Tilt Range	+ 90°/ -75°
Transport Length	862mm (33.9")
Weight	7.9kg (17.4lbs)
