CAT: 3024

Arrowx 1 Sprinter II 2 Stage Alloy

Compare
  • Compact, lightweight and versatile.
  • 5 selectable positions of fluid pan and tilt drag + 0.
  • 16 position CB Pluscounterbalance system.
  • Perfect for payloads to 0-16.0kg (0-35.3lbs).
  • Integrated 100mm bowl.
  • High speed independent 2-stage dual leg locks.
  • Durable black anodised alloy tubing.
  • Comes with mid-level spreader and rubber feet.
  • Comes with 2-stage tripod bag.
  • 3 year warranty.
From your nearest dealer

The 3024 ArrowX 1 Sprinter II, 2-stage alloy system, fitted with mid-level spreader is designed for speed of setup, high level of stability and flexibility of payloads, The mid-level spreader makes this system suitable for all terrains.

Featuring a wide payload range, precision fluid drag and Miller’s innovative 16 position CB Plus™ counterbalance system, ArrowX 1 delivers the flexibility, speed of set up and accuracy of shot, professionals expect and demand.

0-16.0kg (0-35.3lbs) payload range and 5 + 0 selectable pan-tilt fluid drag positions make ArrowX 1 Sprinter II, 2-stage alloy ideal for news gathering and documentaries, enabling it to be used with a wide range of cameras, lenses and accessories.

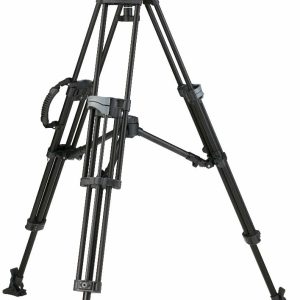

The ArrowX 1 is matched with the 2 stage Sprinter II (alloy) tripod and mid-level spreader to give incredible speed of set up, hugely variable tripod footprint, large height range and the versatility to set up on all terrain.

Specifications - Arrowx 1 Sprinter II 2 Stage Alloy

Camera Platform

Quick release camera plate (Euro)

Components

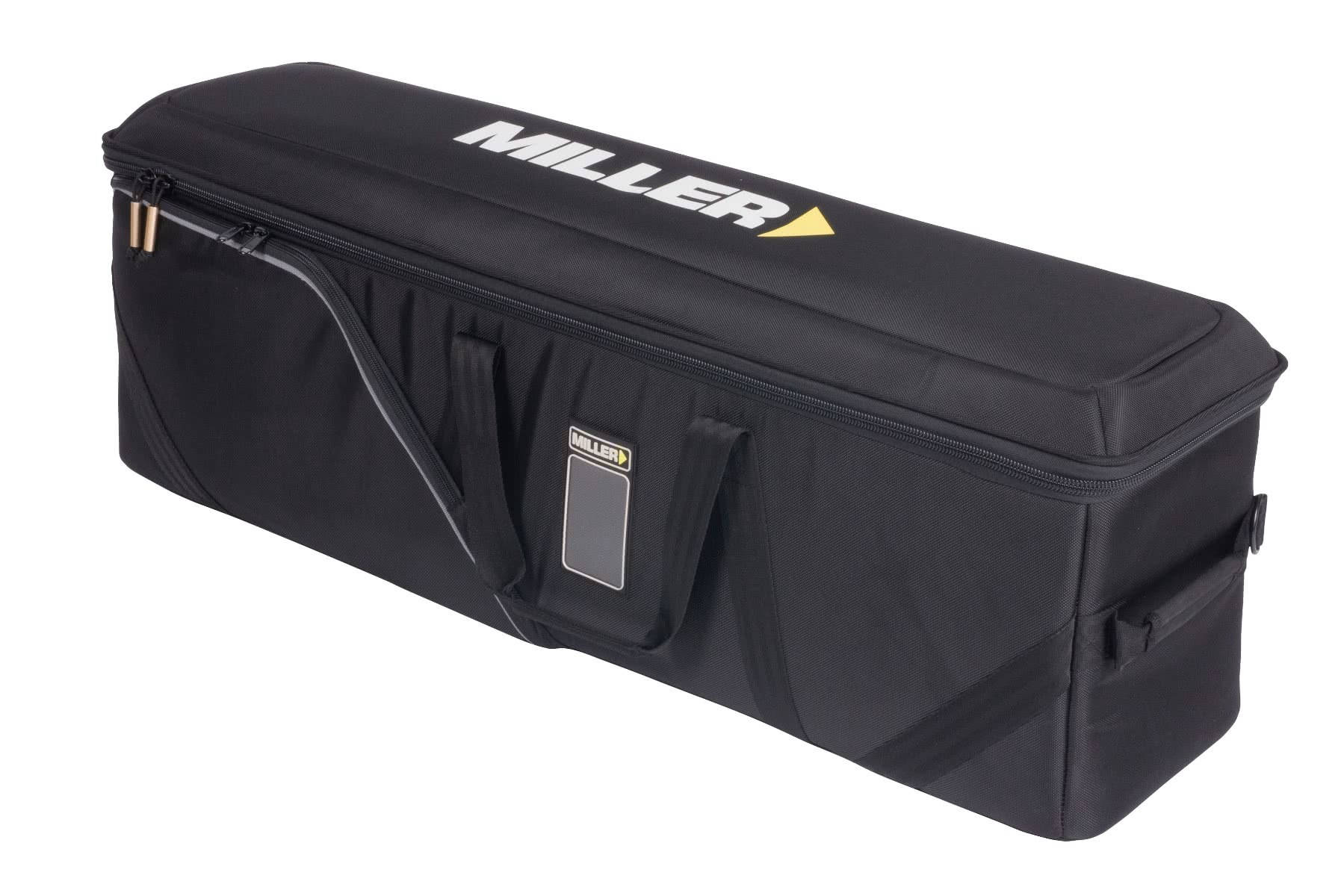

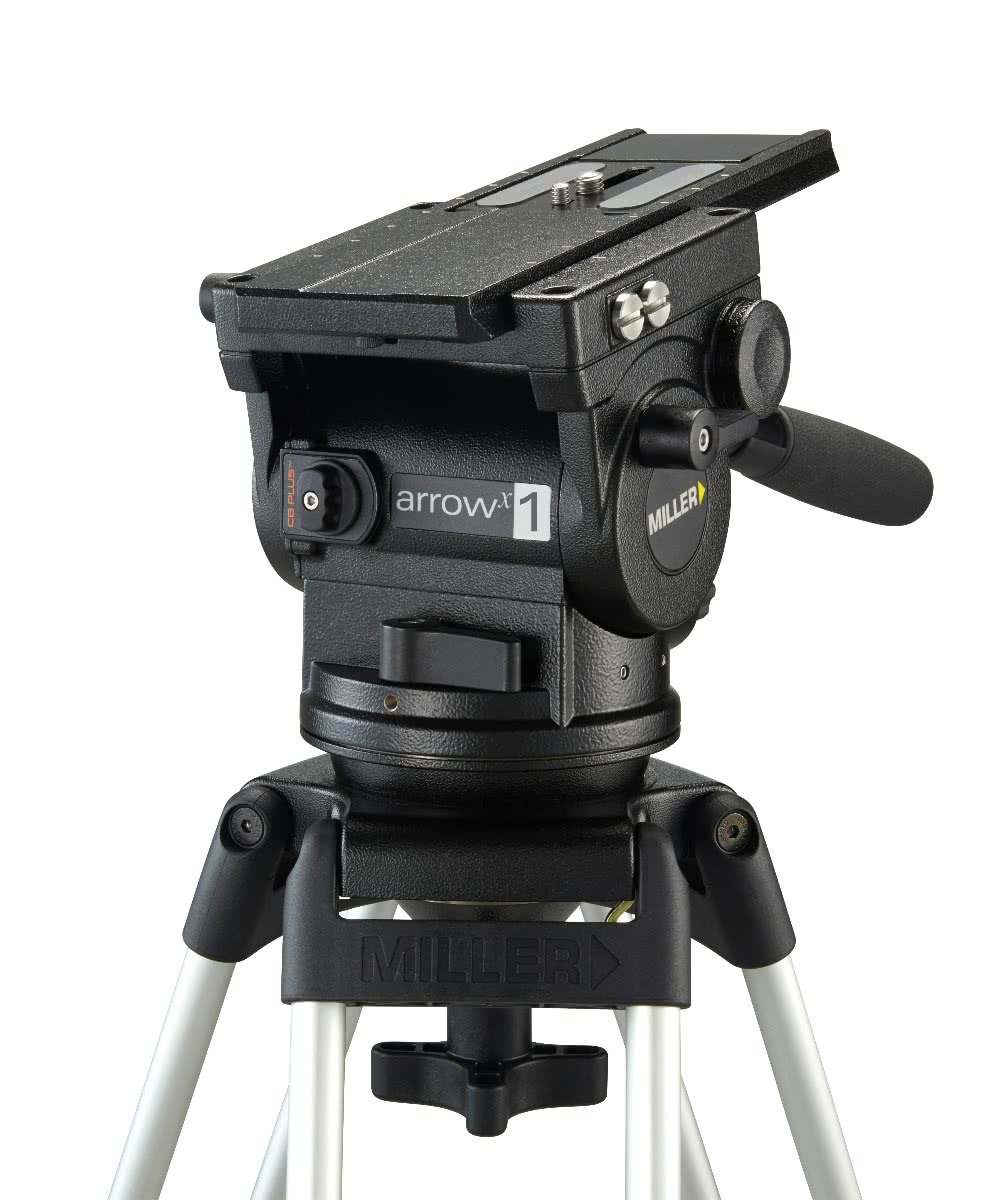

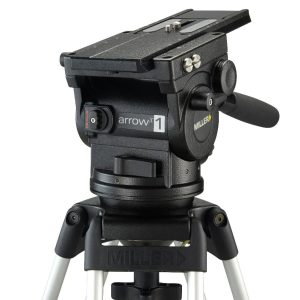

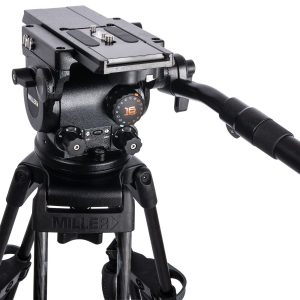

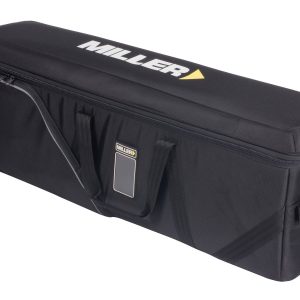

1070: Arrowx 1 fluid head, 1580: Sprinter II 2-stage tripod (alloy), 993: Mid-level spreader, 475: Rubber feet (set of 3), 696: Pan handle – telescopic with clamp, 3502: Arrowx soft case 2-stage

Counterbalance Positions

16 selectable positions

Height Above Bowl

162mm (6.4")

Height Range

602-1692mm (23.7-66.6")

Illuminated Controls

Bubble Level

Leg Extension

2-stage

Leg Material

Alloy

Lock Type

HS Dual Action

Mounting Base

Ø100mm (3.9") ball levelling

Pan Handle

Telescopic 390-590mm (15.4-23.2")

Pan Range

360°

Pan Tilt Drag

5 selectable fluid drag positions + 0

Pan Tilt Locks

Positive lock calliper brake system

Payload Range

0-16.0kg (0-35.3lbs)

Sliding Range

120mm (4.7)

Temperature Range

-40° to +65°C (-40° to +150°F)

Tilt Range

+ 90°/ -75°

Transport Length

862mm (33.9")

Weight

8.3kg (18.3lbs)

Compatible Accessories

EAN | UPC | GTIN 9354041002792
